The FluidoSurge X-294 is a multi pump test rig (series and parallel centrifugal pump test rig) that lets students run single, series and parallel pump configurations on one apparatus and compare the resulting head–discharge–efficiency characteristics.
The Multi Pump Test Rig Apparatus FluidoSurge-X 294 is a self-contained laboratory system designed to study the operation and performance characteristics of different types of pumps. Manufactured by SCIENTICO, the rig enables hands-on experimentation with commonly used pumping technologies. It supports detailed analysis of pump behavior under varying operating conditions. The unit is suitable for fluid mechanics and hydraulic machinery laboratories.
Product Overview

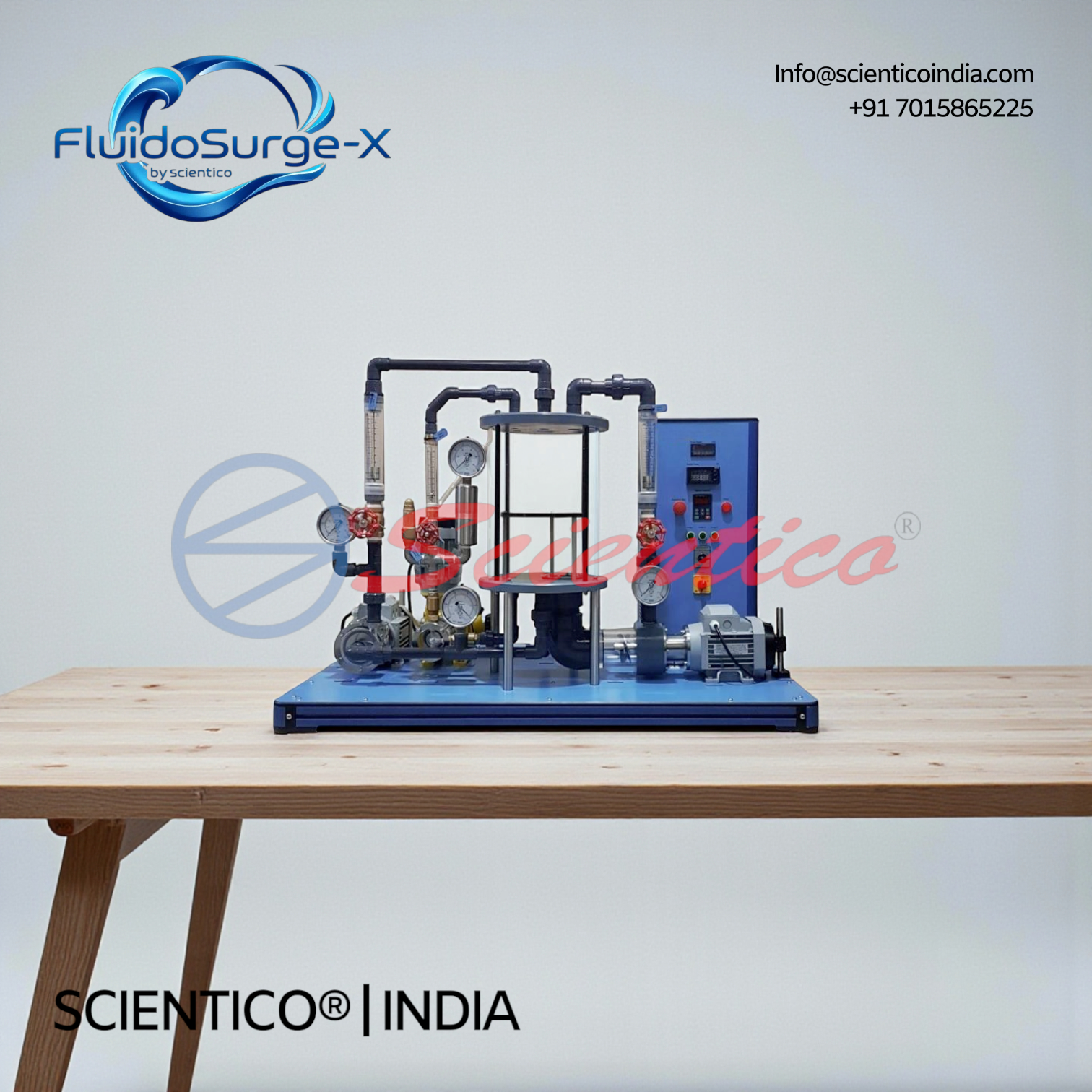

FluidoSurge-X 294 integrates three different pump types on a single skid-mounted test platform: a centrifugal pump, a plunger type reciprocating pump, and an axial flow pump. Each pump can be selected using built-in valves and electrical selector switches without the need for external reconnections. The system includes sensors and instruments to measure pressure, flow rate, speed, and electrical power. Pump speed is controlled using a variable frequency drive, allowing generation of characteristic curves over a wide operating range.
Request Specifications & Pricing
CE-certified, ISO 9001:2015 compliant. Supplied to universities and institutions in 60+ countries.
WhatsApp: +91 701-586-5225 | Email: [email protected]
View Quality Certifications | FAQ, Shipping, Warranty, Lead Time
| Parameter | Specification |
|---|---|
| Apparatus Type | Multi pump performance test rig |
| Pump Types | Centrifugal, Plunger (Reciprocating), Axial Flow |
| Mounting | Single skid, self-contained |
| Water Circuit | Closed loop |
| Service Tank | Transparent, capacity > 20 L |
| Speed Control | Variable frequency drive |
| Flow Measurement | Rotameter |
| Pressure Measurement | Manometers at inlet and outlet |
| Power Measurement | Digital display |
| Electrical Supply | As per laboratory standard |
Centrifugal Pump
| Parameter | Specification |
|---|---|
| Construction | Transparent |
| Maximum Head | 2 to 3 m |
| Flow Rate | > 30 to 40 LPM |
| Motor Power | 0.75 kW |
| Speed Range | 0 to 3000 rpm |
Plunger Pump (Reciprocating Pump)
| Parameter | Specification |
|---|---|
| Pump Head Construction | Transparent |
| Maximum Pressure | 0.4 to 0.6 MPa |
| Flow Rate | Up to 200 LPH |
| Piston Diameter | 65 mm |
| Stroke Length | Up to 25 mm |
| Stroke Adjustment | Mechanical gear system, 10% to 100% |
| Number of Strokes | Up to 100+ |
| Pulse Chamber | Provided |
| Safety | Mechanical pressure safety |
Axial Flow Pump
| Parameter | Specification |
|---|---|
| Construction | Transparent |
| Maximum Head | 5 to 10 m |
| Flow Rate | > 400 LPM |
| Motor Power | 0.75 kW |
| Speed Range | 0 to 3000 rpm |
Drive and Control
| Parameter | Specification |
|---|---|
| Variable Frequency Drive | 1.0 to 1.5 kW |
| Pump Selection | Selector switch |
| Motor Protection | Built-in soft start |
Key Features
-
Single test rig integrating three pump technologies
-
Transparent pump construction for internal flow visualization
-
Variable speed operation using frequency converter
-
Measurement of pressure, flow rate, speed, and electrical power
-
Closed-loop water circulation with integrated service tank
-
No external piping or reconnection required during operation
-
Suitable for performance and efficiency analysis
Applications
-
Fluid mechanics laboratory experiments
-
Study of centrifugal, reciprocating, and axial flow pumps
-
Determination of pump characteristic curves
-
Analysis of hydraulic and electrical efficiency
-
Demonstration of cavitation phenomena in centrifugal pumps
Construction & Design Details
The rig is mounted on a rigid skid frame housing all pumps, piping, instrumentation, and the service tank. Each pump is connected within the internal circuit and selected via valves and electrical switches. Transparent pump housings allow observation of internal flow behavior. A variable frequency drive controls motor speed, while rotameters and manometers provide real-time measurement of flow and pressure.
Experiments
-
Familiarization with operating behavior of different pump types
-
Recording pump characteristic curves
-
Speed versus flow rate, head, and power studies
-
Head versus flow rate and power analysis
-
Electrical power versus flow rate and pressure
-
Determination of hydraulic and electrical efficiency
-
Study of cavitation effects in centrifugal pump
Data Acquisition Software (Optional)

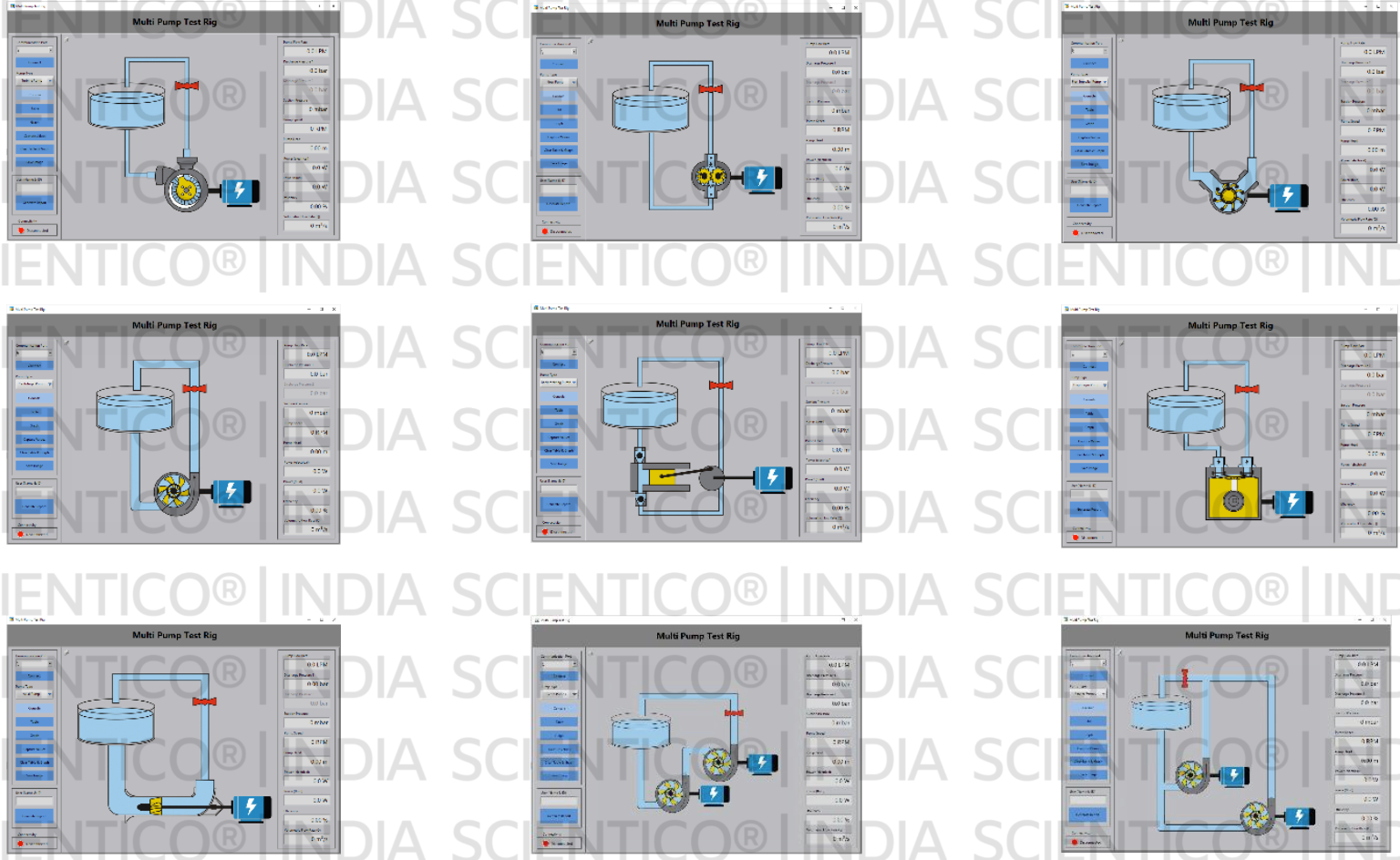

Optional software FluidoSurge-X 294, developed in the NITM LabVIEW™ environment, supports data acquisition, processing, and reporting on Windows systems. The software enables visualization of pump performance curves, calculation of efficiencies, and export of comprehensive CSV reports containing measured and calculated data.
Standard Scope of Delivery
-
1 experimental module
-
1 instructional manual
Export & Supply Capability
SCIENTICO manufactures the Multi Pump Test Rig Apparatus FluidoSurge-X 294 for engineering colleges, technical universities, and training laboratories. The system is suitable for domestic and international supply. Export packing and documentation are provided as per destination requirements.
Q1. Which pump types are included in FluidoSurge-X 294?
Centrifugal pump, plunger type reciprocating pump, and axial flow pump.
Q2. Can pump speed be varied during experiments?
Yes. Pump speed is controlled using a variable frequency drive.
Q3. Is external piping required to change between pumps?
No. Pump selection is done using built-in valves and selector switches.
Q4. Are pump characteristic curves obtained experimentally?
Yes. Flow rate, pressure, speed, and power measurements allow plotting of characteristic curves.
Q5. Is digital data acquisition available?
Yes. Optional DAQ hardware and software are available for advanced data logging and analysis.
